Oxygen Gas Generation Plant
Oxygen plant is gas generation equipment that we use for separating oxygen from other constituent gases present in the atmospheric air. Our air separation is based on the cryogenic distillation process, which is considered the most efficient for generating oxygen with high purity on a large scale. Broadly speaking,the process is able to generate oxygen via liquefaction of the atmospheric air and separating oxygen from other gases by continuous distillation based on boiling points of the gases. Moreover, DCPL uses high quality materials with ASME certification. We pay a great deal of attention on the manufacturing of air separation columns as it is the important part of the plant.
Specification
- Availble Capacity - 30m3/Hour - 500m3
- Cylinder filling - 100-2000 Per Day
- Oxygen Purity - 99.7%
- Suitable for medical & hospital
Process Description of Oxygen Production Plant
Delhi Cryogenics Products Pvt. Ltd. is a medium scale industry setup by a team of experienced, highly dedicated & qualified engineers working in the design, manufacturing and commissioning sector of Oxygen-Nitrogen & Acetylene plants for almost 30 years. We are a leading and reputed company engaged as a manufacturer and supplier of Oxygen, Nitrogen and Acetylene plants in India incorporated since 1987 with the most modern manufacturing facilities at New Delhi, India.
STEP 1- The process in a DCPL Oxygen Nitrogen plant is to produce oxygen and nitrogen from the air and this is known as liquefaction and fractional distillation of air inside the air separation unit.
STEP 2- Compressed & purified air is expanded and liquefied in this process of expansion and cooling in an expansion engine and through expansion valves at low cryogenic temperatures.
STEP 3- The expanded and cooled air from expansion engine and expansion valves enters the lower part of the distillation column in partial liquid form.
STEP 4- The oxygen and nitrogen have different boiling points of -183oC and -195oC respectively. Since nitrogen is more volatile, it is drawn out of the distillation column in vapor form and oxygen is collected in a condenser. The Liquid Oxygen is Compressed by Liquid Oxygen Pump & passed through Heat Exchangers, Gasified and finally filled at 150 Kg/Cm² of pressure to the Cylinders / bottles.
Oxygen Gas Purifying Unit/Process Skid
Oxygen plant work is to generate oxygen with high purity using industrial machinery with fractional distillation technology. Industries require O2 for sustaining their manufacturing operation. However, the need for industrial production arises because oxygen present in the atmospheric air has only 21% purity. Apparently, there is need for higher purity which is only possible with oxygen enrichment through industrial process. Various technologies are available in the market for air separation including cryogenic distillation and pressure swing adsorption. DCPL specializes in cryogenic air separation process & provides oxygen manufacturing plants in various capacities.
Oxygen Gas Plants Specifications
| MODEL | DCPL- 50 | DCPL- 80 | DCPL - 100 | DCPL - 150 | DCPL - 200 | DCPL - 300 | DCPL - 400 | DCPL - 500 |
|---|---|---|---|---|---|---|---|---|
| Capacity(In Cubic Meter per Hour) | 50 | 80 | 100 | 150 | 200 | 300 | 400 | 500 |
| No. of Cylinder per Day | 200 | 320 | 400 | 600 | 800 | 1200 | 1600 | 2000 |
Get Technical Catalogue & Price for Setup Oxygen Gas Plant
+918448814625
Our Sales Team will provide you with best offers for your needs.
Get QuotesOxygen Gas Plant Project Setup for Filling Cylinders

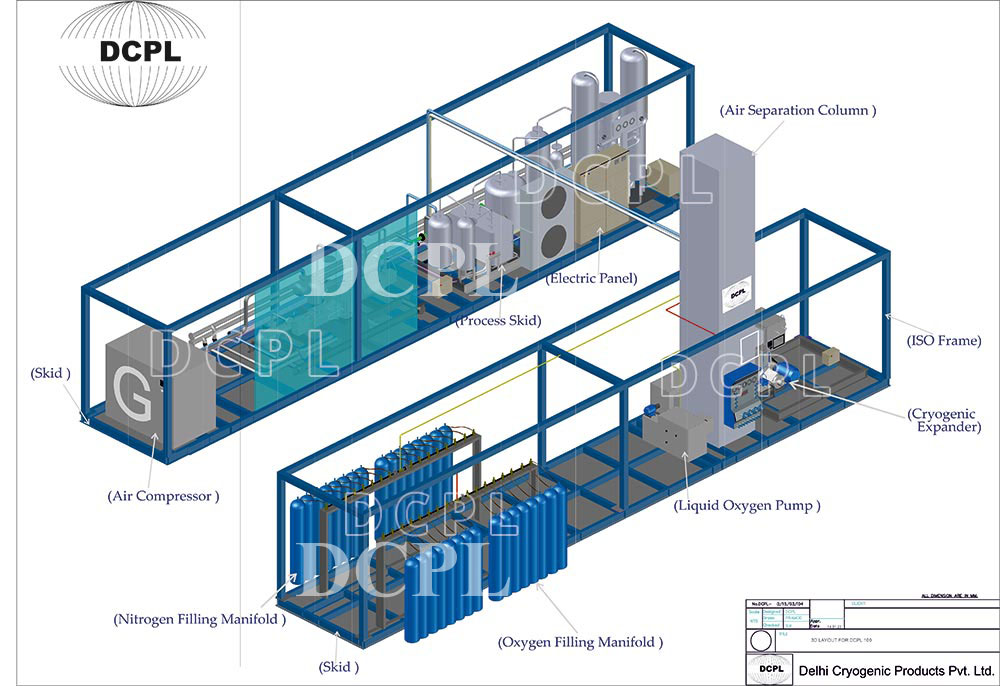

DCPL Oxygen Gas Plant Project Setup involves assembling and erecting the plant with different parts and components. Important parts and components are air compressor, pre-cooling system, purification system, turbo expander and air separation column. Fully manufactured parts are shipped to the location of the client for setup and starting up. Entire process is smooth with the world-class expertise of our experts. Our setup and starting up is trouble-free with atmospheric air being the freely available raw materials. Land use requirement will depend upon the oxygen plant production capacity.
Uses of Oxygen in Various Industries
Oxygen has extensive applications across industries. It needs no elaboration that O2 has got properties that are useful for industries. The non-metallic gas supports combustion and also acts as a catalyst in chemical reaction for making chemical products. Its largest applications depend upon its property of combustion. It is the reason steel industry consumes over 50% of oxygen output followed by the chemical industry. Industries that need constant supply of the gas include steel, chemical, hospitals, paper & pulp, waste water treatment, metallurgy, welding, ceramics, rubber, oil & gas.
Cost of Setting up Oxygen Gas Plant Manufacturer in India?
DCPL decides the cost of oxygen plant after calculating input and other miscellaneous charges. Customer-centric as the company is, it manages the costing in such a way that DCPL oxygen gas plant price remains the most competitive in the industry. However, it is always our endeavour to ensure that customers get the best quality products. It goes without saying that our product pricing remains competitive. Our top priority is to manufacture and supply air separation with world-class quality and performance. And, our products have life cycle of over 30 years, which is possible only high-quality components and materials.
